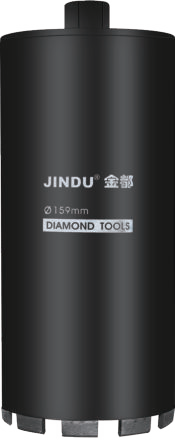

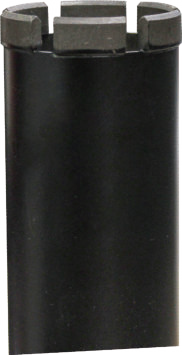

Laser welding Stone drill bit

Laser welding Stone drill bit
Laser welding Stone drill bit
Laser welding Stone drill bit
Laser welding Stone drill bit
Laser welding Stone drill bit
Features

Suitable for stone drilling

Specifications
Diameter(inch)(mm) Tooth size(mm) Tooth number Steel pipe long(mm)
1-1/4" 32 22/17x3.8x10.2 3 350-1000
1-1/2" 38 22.5/17.5x3.8x10.2 4 350-1000
1-5/8" 40 22.5/17.5x3.8x10.2 4 350-1000
1-3/4" 4 25.5/20.5x3.8x10.2 4 350-700
2" 50 20x3.8x10.2 5 350-700
2-1/8" 53 20x3.8x10.2 5 350-700
2-1/4" 57 20x3.8x10.2 6 350-700
2-1/2" 63 24x3.8x10.2 6 350-700
66 24x3.8x10.2 6 350-700
2-3/4" 71 24x3.8x10.2 7 350-700
3" 76 24x3.8x10.2 7 350-700
3-1/4" 83 24x3.8x10.2 8 350-700
3-1/2" 89 24x3.8x10.2 8 350-700
95 24x3.8x10.2 8 350-700
4" 102 24x4.0x10.2 9 350-700
4-1/4" 107 24x4.0x10.2 9 350-700
112 24x4.0x10.2 10 350-700
4-1/2" 114 24x4.0x10.2 10 350-700
120 24x4.3x10.2 11 350-700
5" 127 24x4.3x10.2 11 350-700
5-1/5" 132 24x4.3x10.2 11 350-700
6" 152 24x4.3x10.2 12 350-700
6-1/4" 159 24x4.3x10.2 12 350-700
6-1/2" 166 24X4.3x10.2 13 350-700
7" 178 24x4.3x10.2 13 350-700
8" 202 24x5.0x10.2 15 350-700
8-1/2" 220 24x5.0x10.2 16 350-600
244 24x5.0x10.2 17 350-600
10" 254 24x5.0x10.2 17 350-600
274 24x5.0x10.2 18 350-600
12" 300 24x5.0x10.2 20 350-600
320 24x5.5x10.2 21 350-600
14" 350 24x5.5x10.2 22 350-600
16" 400 24x5.5x10.2 24 350-600
18" 450 24x5.5x10.2 26 350-600
20" 500 24x5.5x10.2 28 350-600
22" 550 24x5.5x10.2 30 350-600
24" 600 24x5.5×10.2 32 350-600


Accessories
Diameter(inch)(mm) Tooth size(mm) Tooth number Steel pipe long(mm)
1-1/4" 32 22/17x3.8x10.2 3 350-1000
1-1/2" 38 22.5/17.5x3.8x10.2 4 350-1000
1-5/8" 40 22.5/17.5x3.8x10.2 4 350-1000
1-3/4" 4 25.5/20.5x3.8x10.2 4 350-700
2" 50 20x3.8x10.2 5 350-700
2-1/8" 53 20x3.8x10.2 5 350-700
2-1/4" 57 20x3.8x10.2 6 350-700
2-1/2" 63 24x3.8x10.2 6 350-700
66 24x3.8x10.2 6 350-700
2-3/4" 71 24x3.8x10.2 7 350-700
3" 76 24x3.8x10.2 7 350-700
3-1/4" 83 24x3.8x10.2 8 350-700
3-1/2" 89 24x3.8x10.2 8 350-700
95 24x3.8x10.2 8 350-700
4" 102 24x4.0x10.2 9 350-700
4-1/4" 107 24x4.0x10.2 9 350-700
112 24x4.0x10.2 10 350-700
4-1/2" 114 24x4.0x10.2 10 350-700
120 24x4.3x10.2 11 350-700
5" 127 24x4.3x10.2 11 350-700
5-1/5" 132 24x4.3x10.2 11 350-700
6" 152 24x4.3x10.2 12 350-700
6-1/4" 159 24x4.3x10.2 12 350-700
6-1/2" 166 24X4.3x10.2 13 350-700
7" 178 24x4.3x10.2 13 350-700
8" 202 24x5.0x10.2 15 350-700
8-1/2" 220 24x5.0x10.2 16 350-600
244 24x5.0x10.2 17 350-600
10" 254 24x5.0x10.2 17 350-600
274 24x5.0x10.2 18 350-600
12" 300 24x5.0x10.2 20 350-600
320 24x5.5x10.2 21 350-600
14" 350 24x5.5x10.2 22 350-600
16" 400 24x5.5x10.2 24 350-600
18" 450 24x5.5x10.2 26 350-600
20" 500 24x5.5x10.2 28 350-600
22" 550 24x5.5x10.2 30 350-600
24" 600 24x5.5×10.2 32 350-600
